Flux emergence

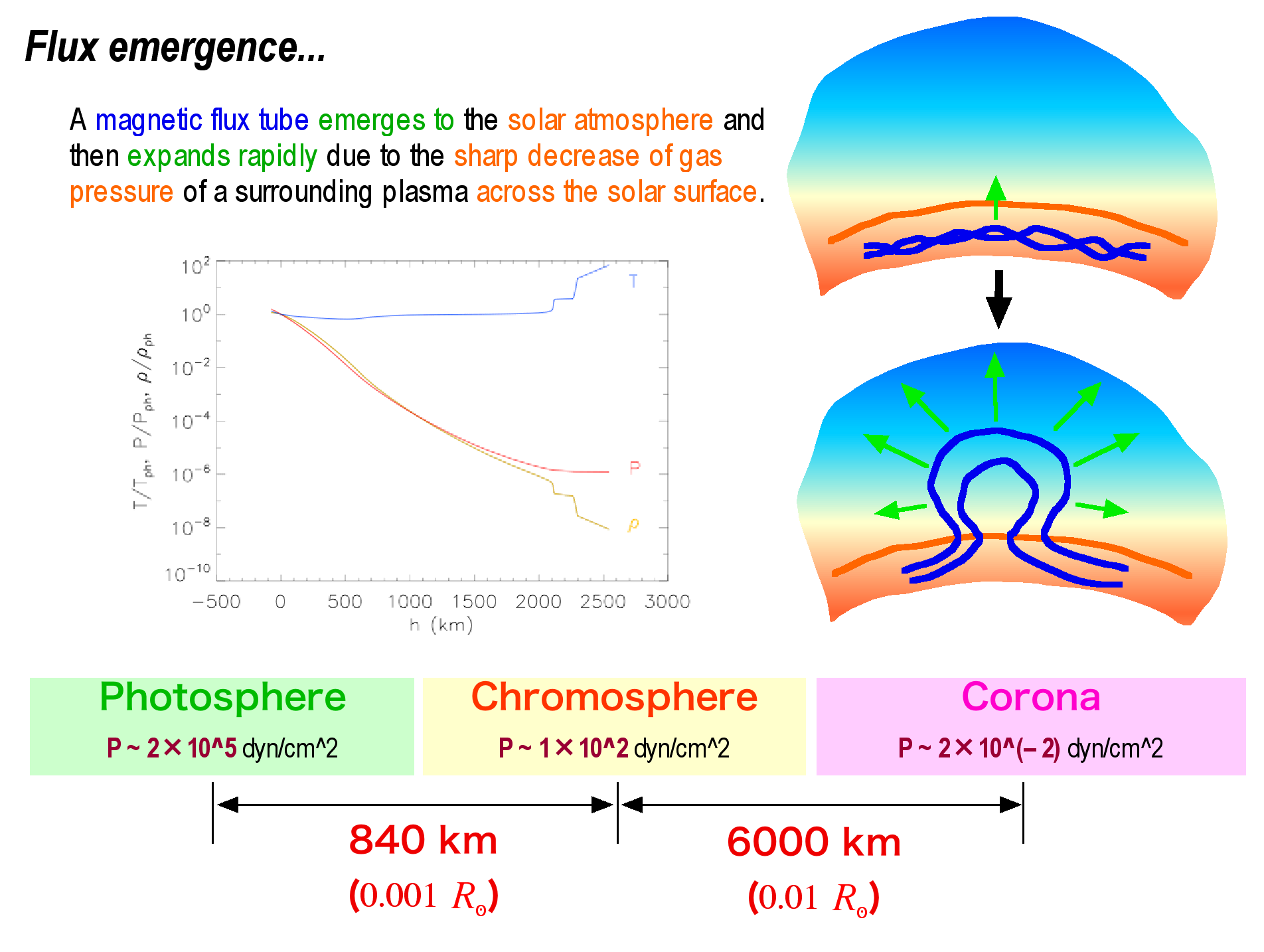

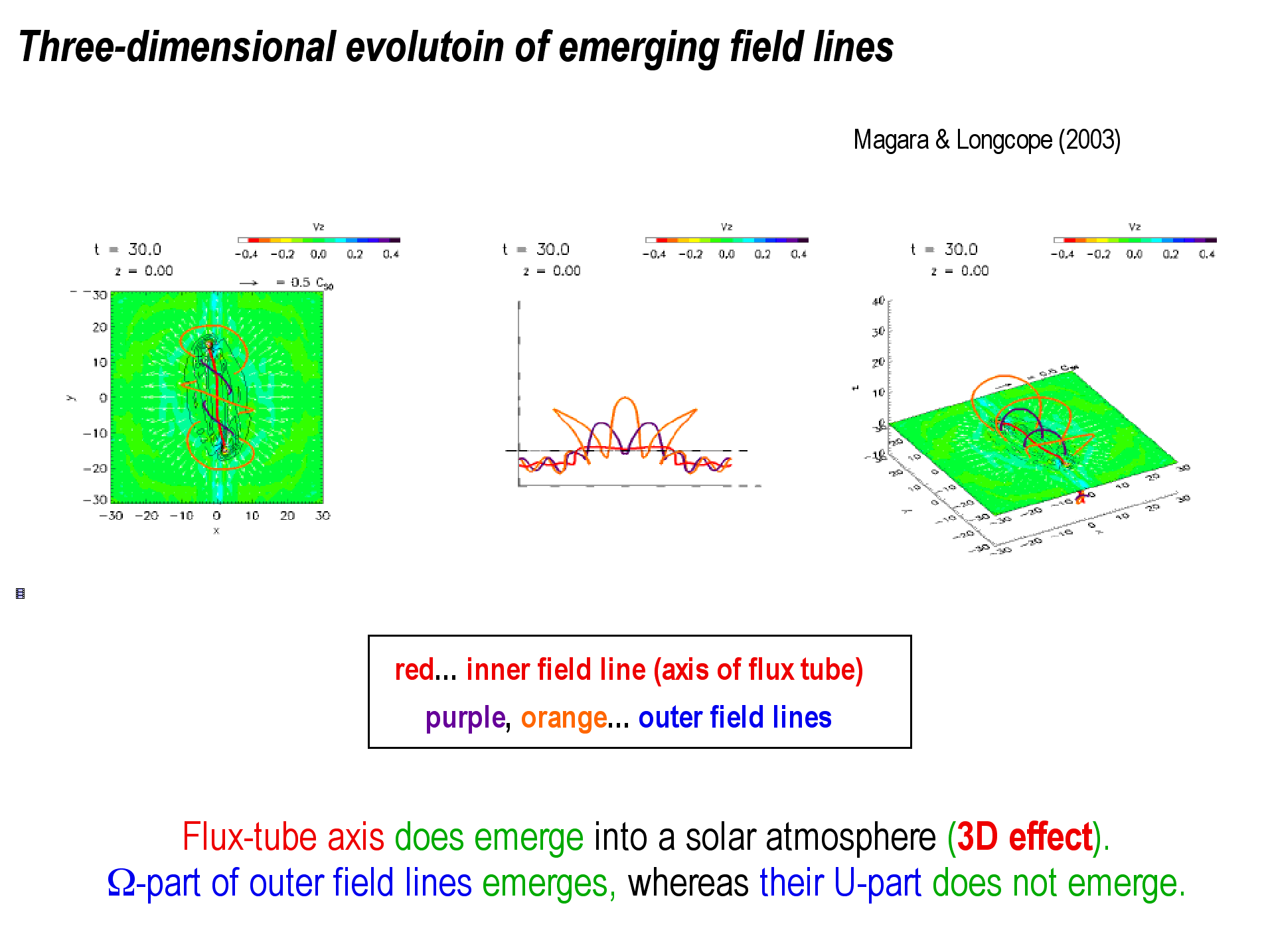

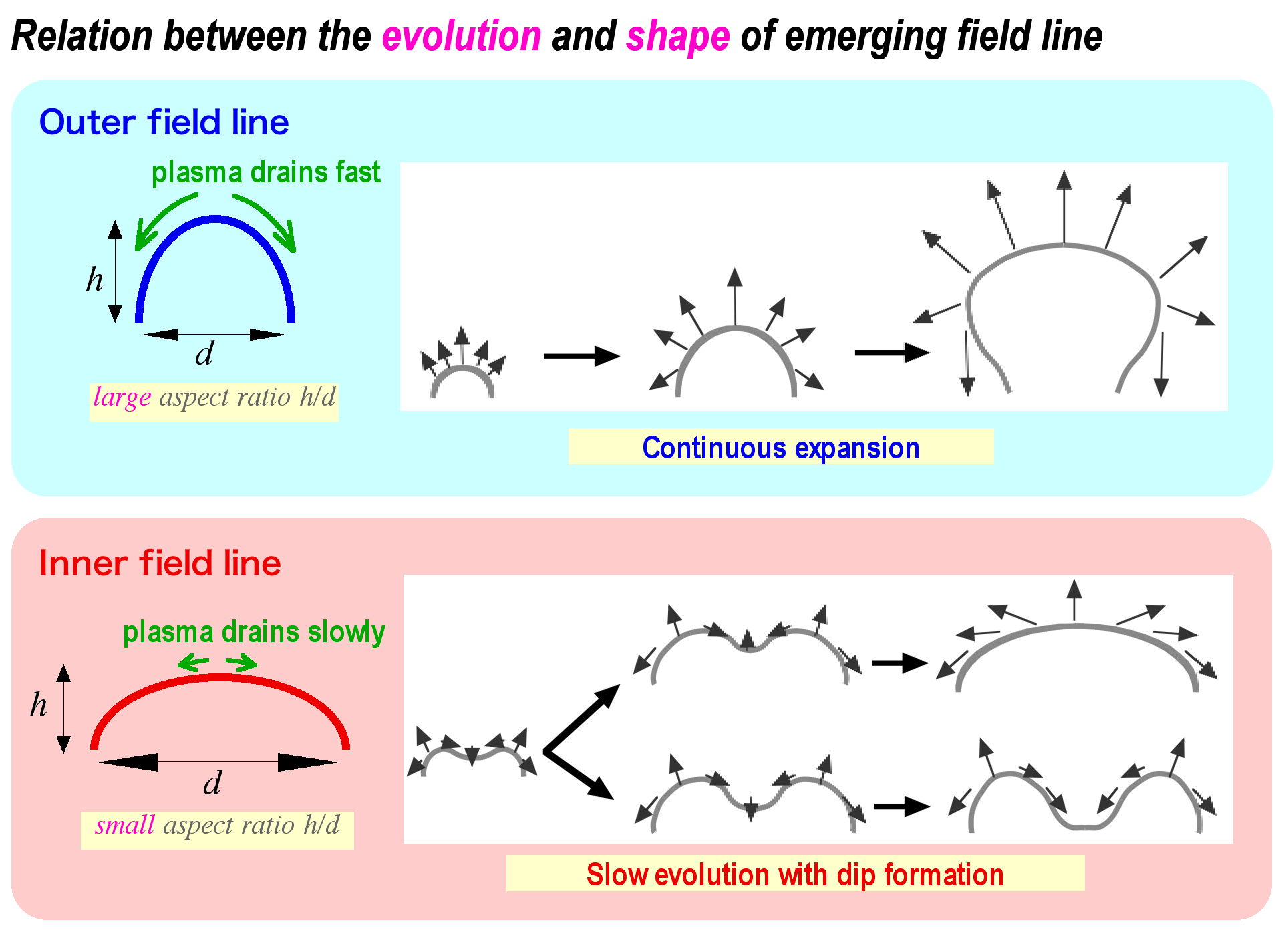

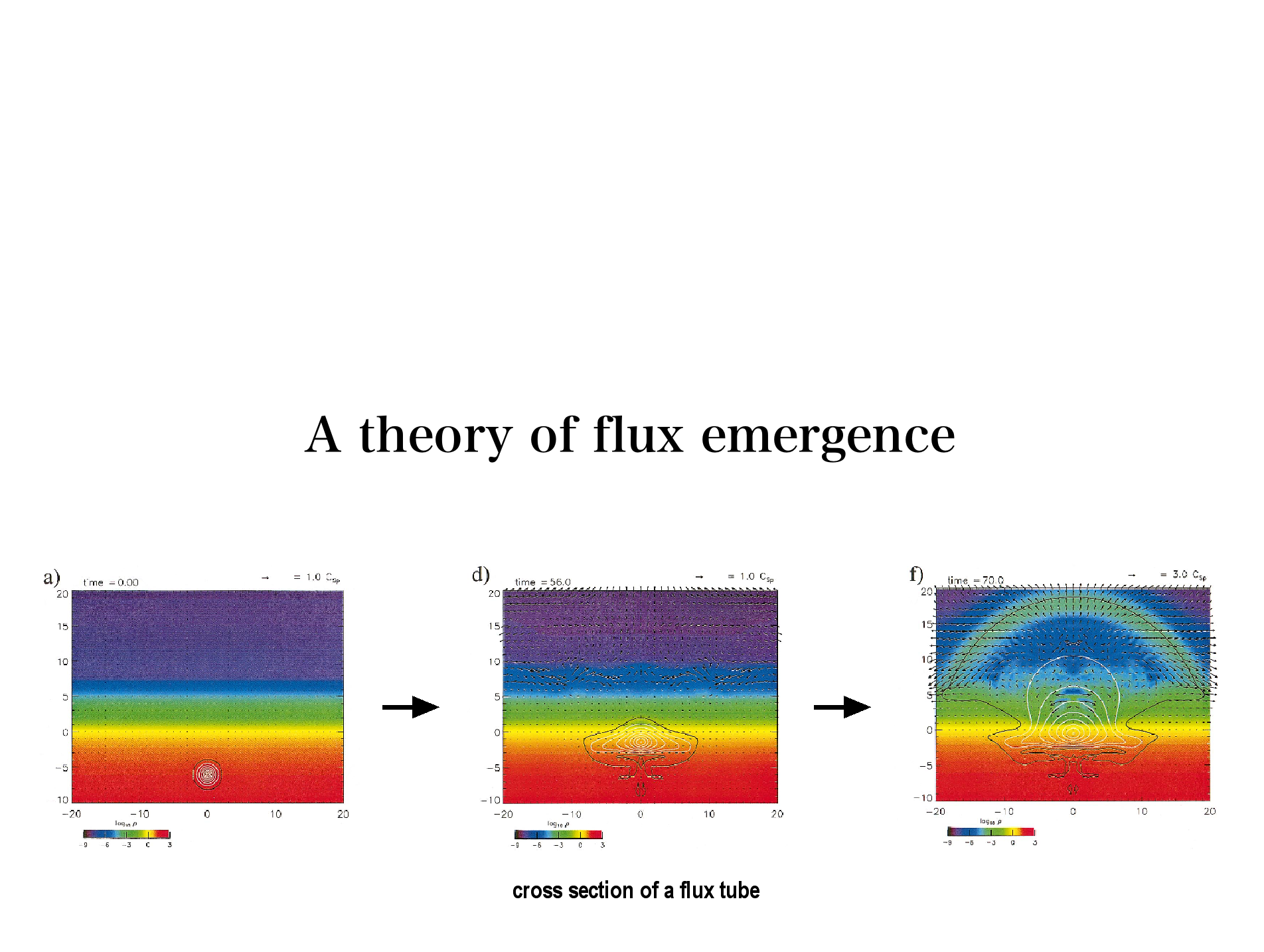

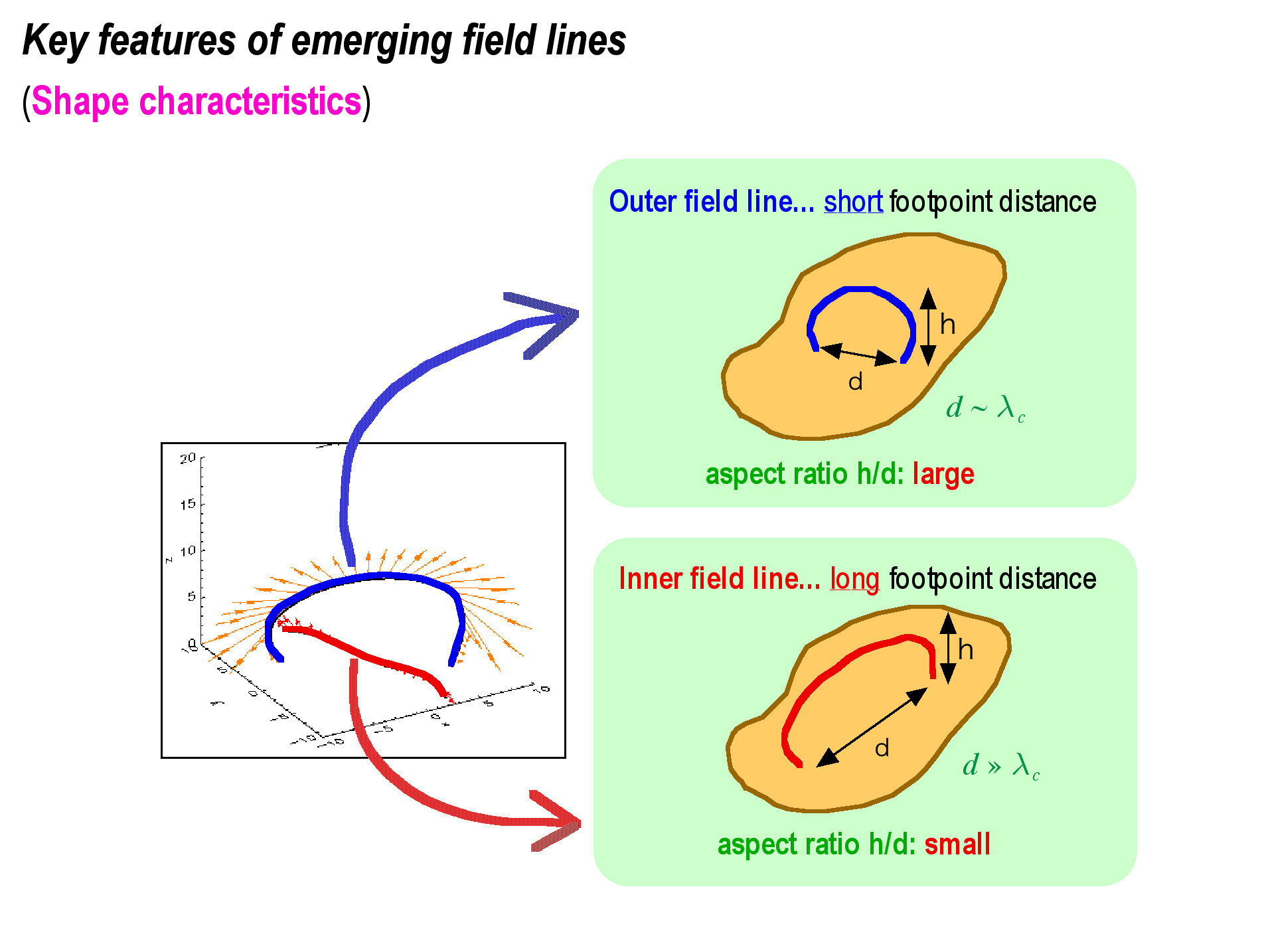

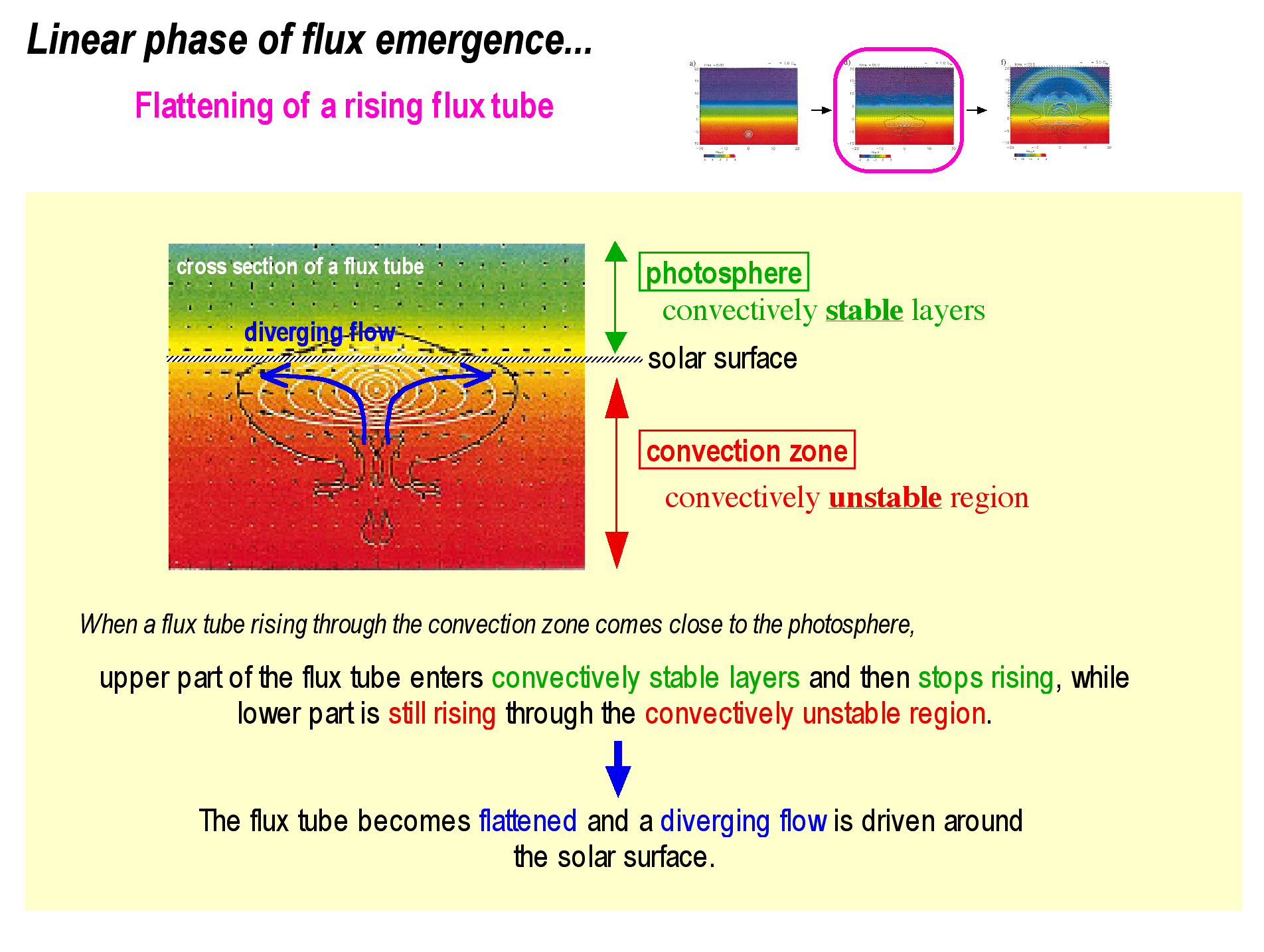

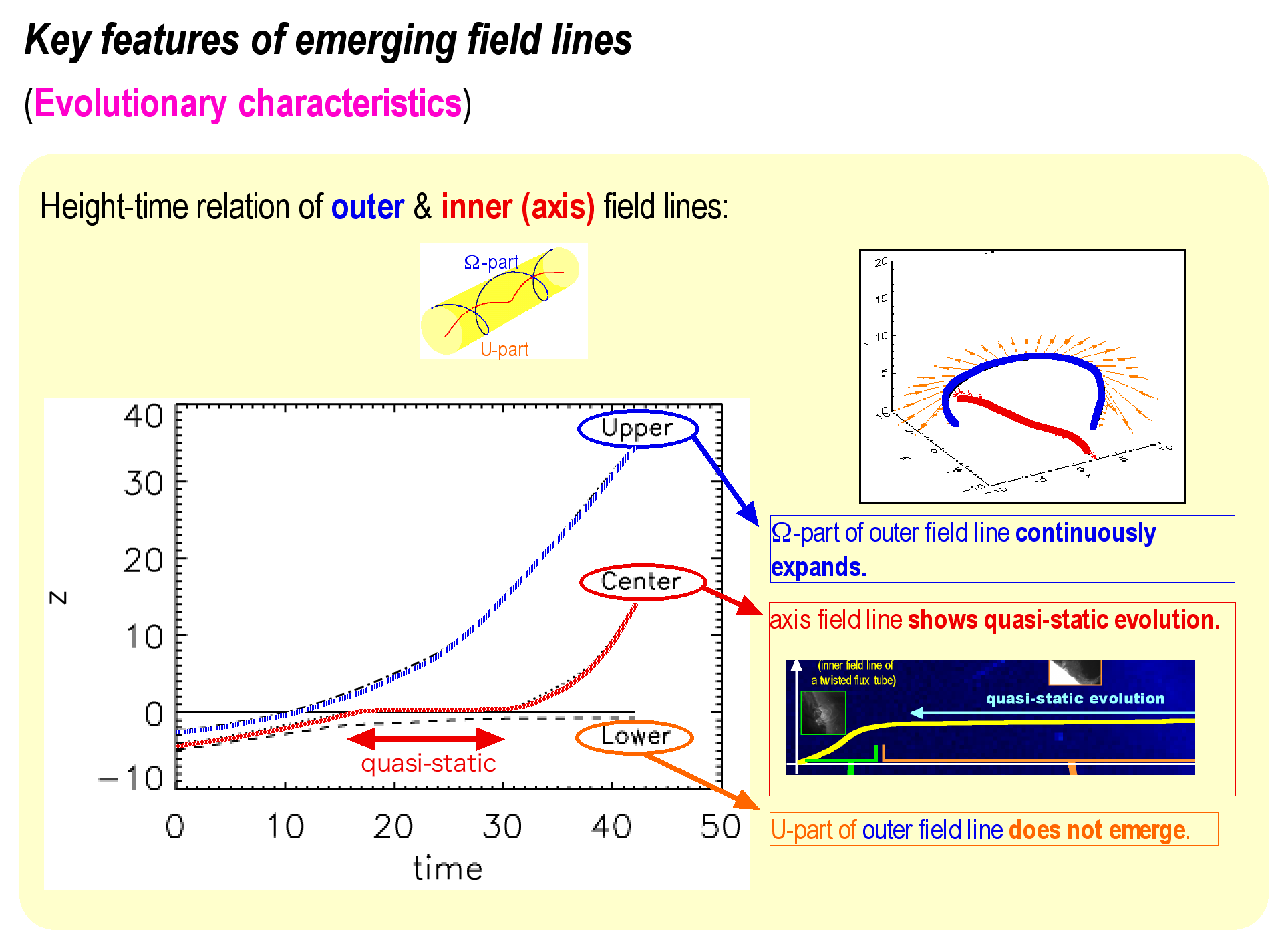

Flux emergence is a highly dynamic process in which the solar magnetic field emerges from a dense solar interior into a highly stratified solar atmosphere (hereafter, emerging magnetic field). Various active phenomena observed on the Sun depend on physical properties of the emerging magnetic field. The emerging field is suggested to have the shape of a thin flux tube before it emerges to a solar surface, and when emerging there, it starts to expand rapidly because the gas pressure of a plasma surrounding the flux tube decreases sharply across the surface.









animation version







References

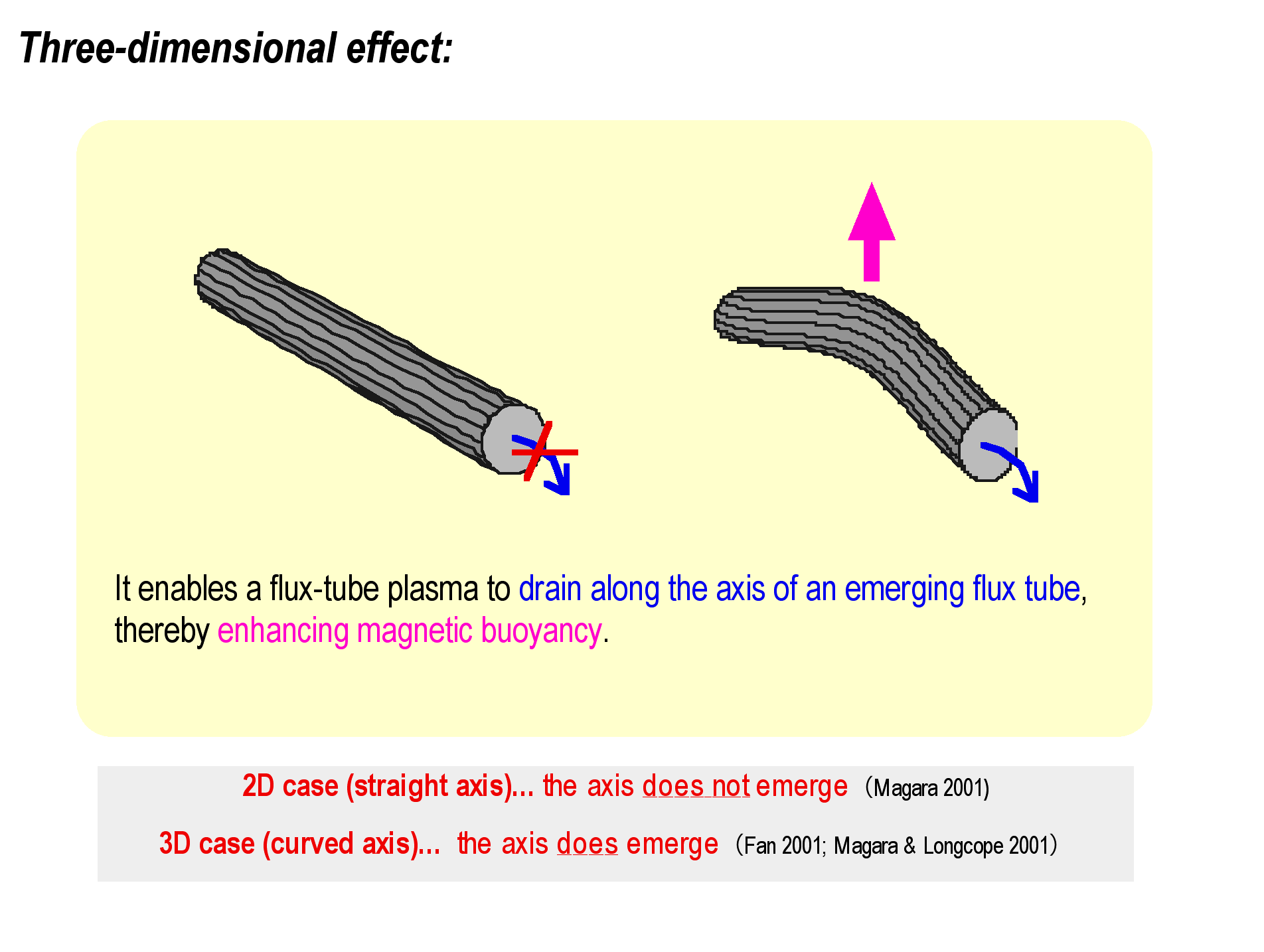

Fan, Y. 2001, ApJ, 554, L111
Magara, T. 2001, ApJ, 549, 608

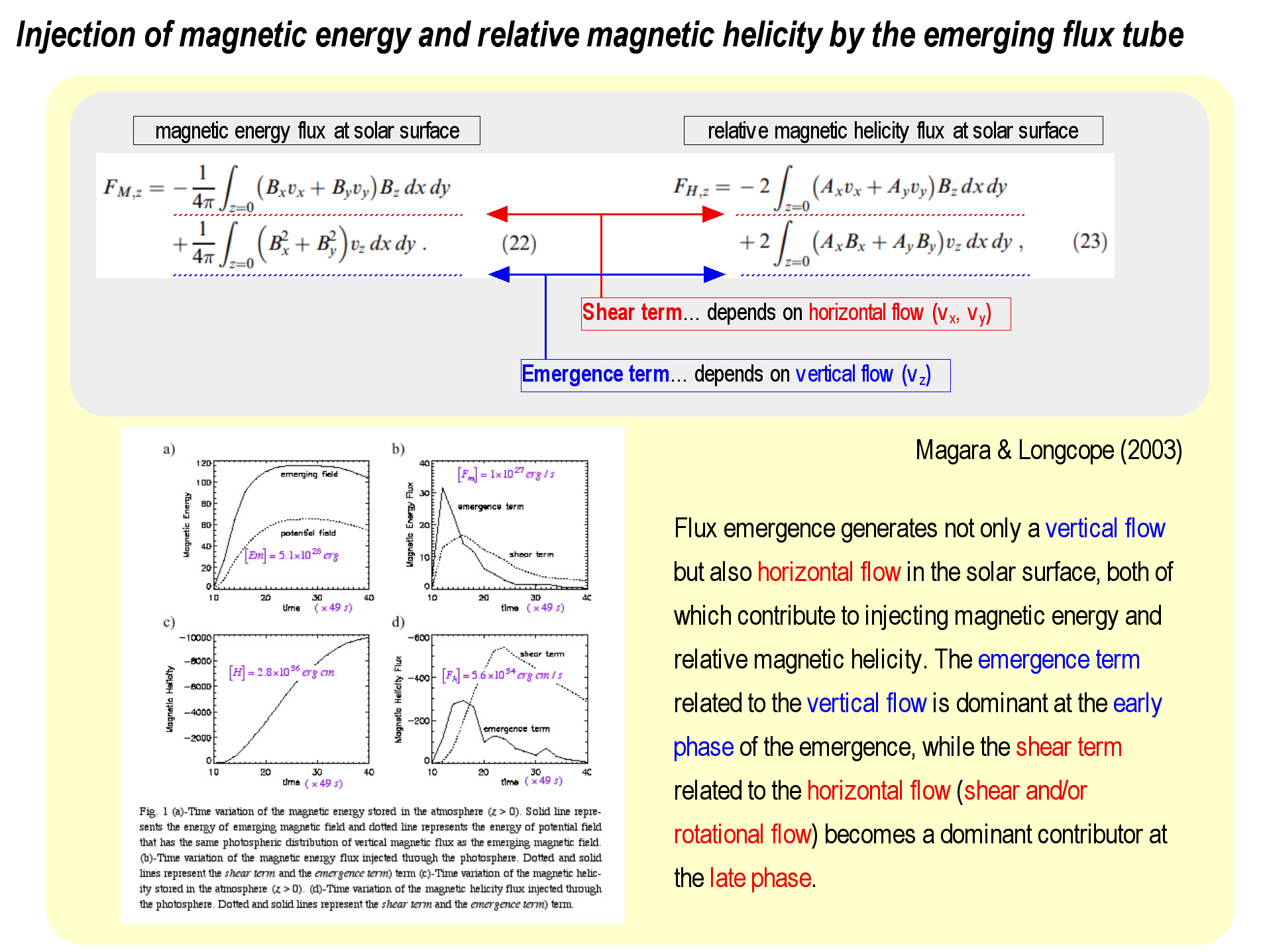

Magara, T. & Longcope, D. W. 2003, ApJ, 586, 630

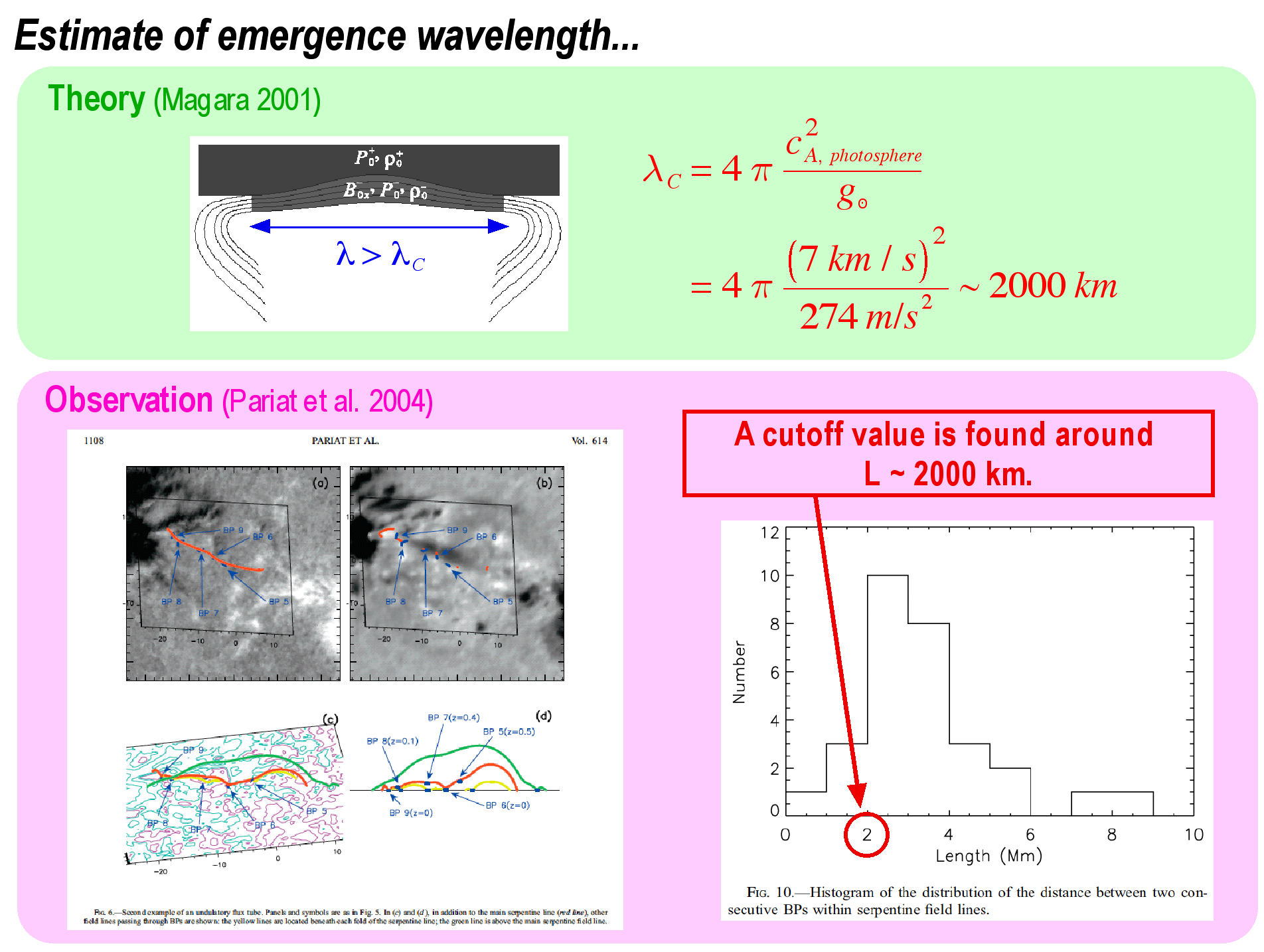

Pariat, E. et al. 2004, ApJ, 614, 1099

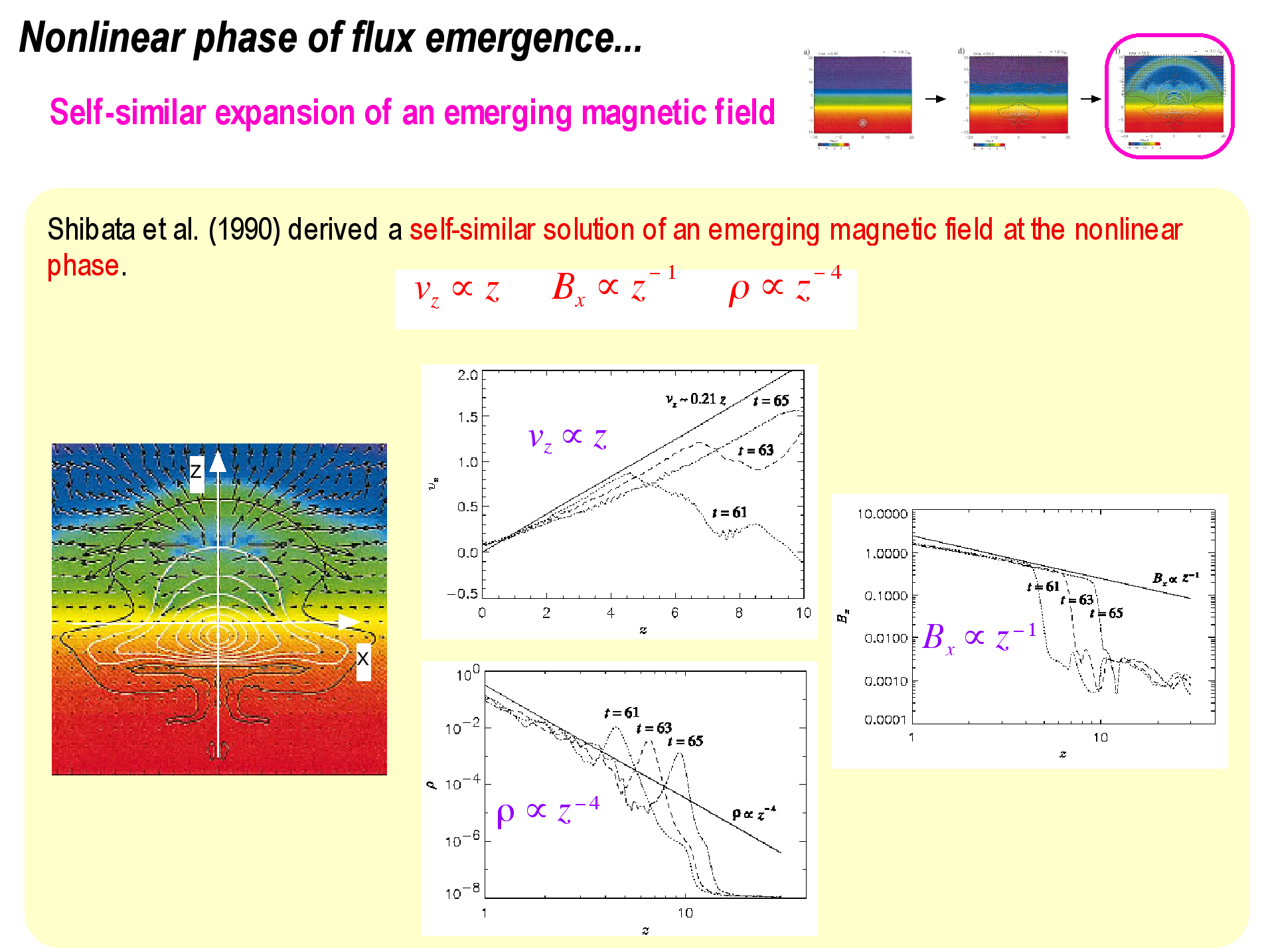

Shibata, K., Tajima, T., & Matsumoto, R. 1990, Phys. Fluids B, 2, 1989
